Spring cone crusher

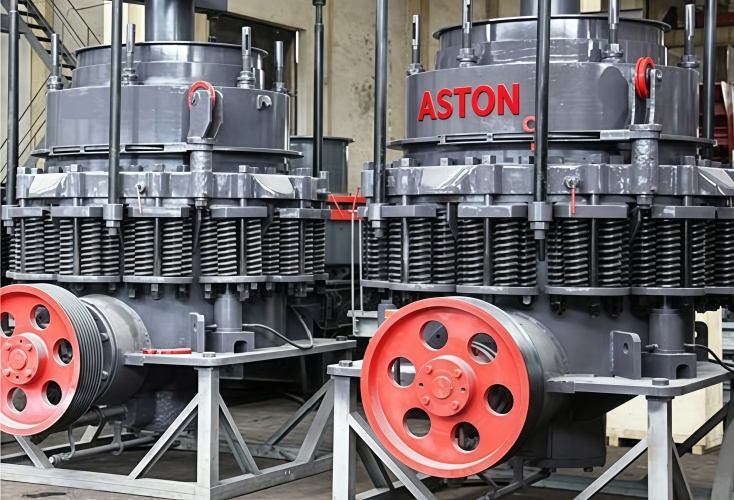

ASTON Spring Cone Crusher: High-Efficiency Secondary & Fine Reduction
As a time-tested classic in cone crushing technology, the ASTON spring cone crusher delivers high power, high reduction ratios, and dependable throughput for demanding aggregate and mining operations. Designed for steady performance, it efficiently processes tough feeds into uniform fine fractions across continuous industrial production.
Equipped with a reliable spring safety release system, the machine protects critical mechanical structures from overload by effortlessly clearing non-crushable materials. Its heavy-duty crushing cavity handles a wide range of hard, abrasive rocks and ores—including granite, basalt, iron ore, copper ore, quartz, and limestone—maintaining steady output during fine and ultra-fine reduction.
Built for cost-effective operation and mechanical durability, this equipment integrates smoothly into secondary and tertiary processing circuits. Its straightforward design ensures low maintenance requirements, high operational stability, and a reliable solution for aggregate plants, mineral processing facilities, and refractory production.
Feeding port size: 40~350mm
Feed particle size: 40~300mm
Capacity: 15~1000t/h
Price: 5000-30000usd
Coarse stone
Middle size stone
Fine stone
Application field of spring cone crusher
Material
Engineered to process a broad spectrum of medium-hard to extremely hard and abrasive minerals—including granite, basalt, diabase, river pebbles, iron ore, copper ore, quartz, limestone, slag, and refractory materials—delivering consistent size reduction across secondary and fine crushing stages.
Application
Widely utilized in aggregate quarrying plants, metallic and non-metallic mineral processing facilities, metallurgical works, highway and railway construction projects, hydropower stations, and refractory manufacturing operations that require steady, high-volume secondary or fine crushing.
Spring cone crusher features:
- Increased eccentricity & Higher processing capacity: An expanded eccentric stroke combined with optimized eccentric motion significantly boosts material throughput, maximizing total plant productivity.
- Higher speed & Fine crushing efficiency: Elevated rotational speed and input power, paired with an raised gyration center and optimized cavity design, deliver higher fine-spec yields and uniform particle size distribution.
- Thickened wear liners & Heavy-duty reliability: Key structural components are cast from high-strength alloys with reinforced weight distribution, while extra-thickened liners extend wear life and reduce component replacement frequency.
- Hydraulic adjustment & Rapid maintenance: Driven by a hydraulic motor, the discharge setting allows precise and continuous adjustment during operation, enabling fast cone assembly removal within 10 minutes to minimize downtime.
Specification of spring cone crusher:
| Model | Crushing cone diameter (mm) | Feeding port size (mm) | Feed particle size (mm) | Adjustment range of ore discharge mouth (mm) | Motor power (kw) | Capacity（t/h） |
| PYB-600/75 | 600 | 75 | 65 | 12-25 | 30 | 40 |
| PYB-900/135 | 900 | 135 | 115 | 15-50 | 55 | 50-90 |
| PYB-1200/170 | 1200 | 170 | 145 | 20-50 | 110 | 110-168 |
| PYB-1750/250 | 1750 | 250 | 215 | 25-60 | 155 | 280-480 |
| PYB-2100/350 | 2100 | 350 | 300 | 30-60 | 280 /210 | 500-800 |
| PYB-2200-350 | 2200 | 350 | 300 | 30-60 | 280 | 500-1000 |
| PYZ-900/70 | 900 | 70 | 60 | 5-20 | 55 | 20-65 |
| PYZ-1200/115 | 1200 | 115 | 100 | 8-25 | 110 | 42-135 |
| PYZ-1750/215 | 1750 | 215 | 180 | 10-30 | 155 | 115-320 |
| PYZ-2200/275 | 2200 | 275 | 230 | 10-30 | 280 | 200-580 |
| PYD-600/40 | 600 | 40 | 35 | 3-13 | 30 | 12-23 |
| PYD-900/50 | 900 | 50 | 40 | 3-13 | 55 | 15-50 |
| PYD-1200/60 | 1200 | 60 | 50 | 3-15 | 110 | 18-105 |
| PYD-1750/100 | 1750 | 100 | 85 | 5-15 | 155 | 75-230 |
| PYD-2200/130 | 2200 | 130 | 100 | 5-15 | 280 | 125-350 |
Materials processed by spring cone crusher
Granite
Basalt
Quartz
Iron ore
Copper ore
Gold ore
Andesite
Pebble
Diabase
Gabbro
Lead-zinc ore
Fluorite
Versatile applications for spring cone crusher
The ASTON spring cone crusher fits seamlessly into high-intensity processing workflows, including mineral processing plants, hard-rock quarries, and infrastructure material sites. Its rugged design ensures continuous, fine-stage size reduction under demanding job-site conditions.
Typical application areas
Metallic & Non-metallic mining:
Secondary and fine crushing of hard, abrasive ores (such as iron ore, copper ore, and gold ore), producing uniform feed sizes to optimize downstream grinding circuit efficiency.
Aggregate quarrying & Production:
Fine reduction and sizing of tough rocks like granite, basalt, river pebbles, and quartz, supplying durable raw materials for concrete mixing and infrastructure construction.
Infrastructure & Civil engineering:
Continuous stone material processing for highways, railways, and hydropower projects, delivering stable output for high-capacity production facilities.
Refractory & Industrial minerals:
Precision fine and ultra-fine comminution for hard industrial minerals (such as fluorite, slag, and raw refractory materials), achieving precise size distribution control.
Explore industrial applicationsWorking process of spring cone crusher
The ASTON multi cylinder hydraulic cone crusher utilizes a continuous gyration mechanism to process tough feeds efficiently. Driven by an eccentric sleeve, the mantle periodically approaches and recedes from the concave—combining intense extrusion and bending forces to fracture rock, followed by rapid gravity discharge for continuous downstream processing.
Pre-screened raw material is fed into the top hopper and evenly distributed across the crushing chamber via the distributor plate, maintaining a choked feed condition for optimal crushing density and uniform liner wear.
The electric motor transmits power through a fluid coupler to the bevel gear set, rotating the eccentric sleeve. As the sleeve revolves around the rigid, stationary main shaft, it compels the mantle to perform continuous, high-force gyratory movements.
As the moving cone approaches the stationary concave, materials are trapped and subjected to intense inter-particle crushing. The combination of compressive force, impact, and shearing continuously fractures the rocks into precise, uniform sizes as they descend through the crushing zone.
Particles meeting the setting requirement pass through the discharge opening at the bottom. If unbreakable foreign matter enters the chamber, the spring safety system momentarily compresses to lift the upper frame, automatically clearing the blockage without stopping operation.
Spring cone crusher crusher main components
The ASTON spring cone crusher combines heavy-duty structural components with automated control systems for maximum operational stability. Featuring a ribbed cast steel frame, hydraulic setting adjustments, and automated safety interlocks, every part is built to withstand high crushing stresses while minimizing maintenance downtime.
The stationary main shaft directly absorbs massive crushing stresses, while the precision-machined eccentric sleeve drives the cone to gyrate with maximum force and rotational stability.
Cast from premium wear-resistant alloy steel with thickened profiles, the mantle and concave liners deliver optimized cavity geometry and extended wear life under harsh abrasion.
Supports the gyrating cone assembly and evenly distributes multi-directional crushing loads, ensuring smooth mechanical operation and preventing localized wear.
Heavy-duty springs automatically lift the frame to clear tramp iron, while the hydraulic motor and sleeve allow fast, continuous setting adjustments to control product size.

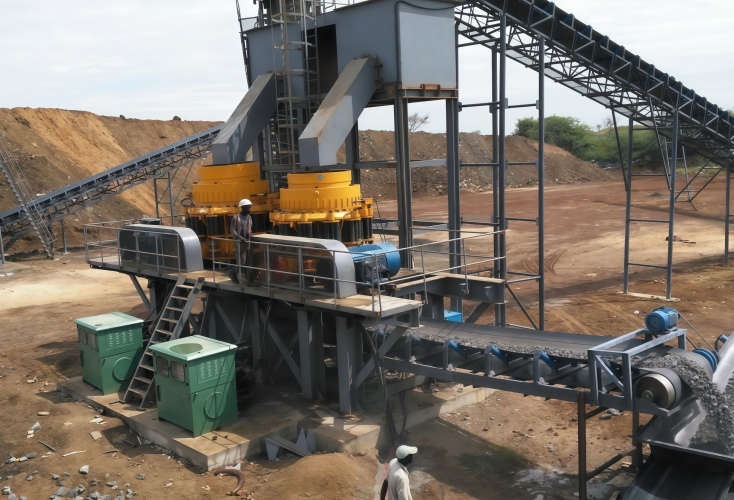

Spring cone crusher exported cases:
