VSI Crushers
Produce Premium M-Sand at the Lowest Cost Per Ton
Engineered for “Rock-on-Rock” precision, delivering perfectly cubical aggregate and high-spec sand that passes every inspection, every time.
Our VSI technology turns hard rock into perfectly cubical, spec-grade M-sand that commands a premium price—then protects that margin with a rock-on-rock chamber that cuts wear-part costs by up to 30%. Adjustable rotor speeds dial in everything from 0–5 mm sand to 10–20 mm aggregate, while quick-access hydraulics keep downtime to minutes, not shifts.
- Meets ASTM, EN & GB sand standards
- Up to 30% lower wear-part cost
- 24/7 global parts & support
Exlpore our vsi crusher solutions
Stationary vsi crusher
PF series / LF series
Capacity range: 15-800t/h
Mobile vsi crusher
Wheel type / Crawler type
Capacity range: 100-500t/h
Materials processed by vsi crushers
Hard & abrasive rocks
River pebble
Granite
Basalt
Quartzite
Andesite
Ores & industrial minerals
Iron ore
Copper ore
Gold ore
Cement clinker
Common construction materials
Limestone
Sandstone
Dolomite
Key benefits of Aston vsi crusher for sale
Premium cubical shape for high-spec projects
Engineered specifically for shaping, our vsi technology ensures a high-density cubical output with minimal flaky or elongated particles. This high-quality manufactured sand reduces cement requirements in concrete mixes, making your product the preferred choice for high-strength infrastructure and high-rise construction projects that demand rigorous compliance with international standards.
Optimized wear life with rock-on-rock crushing
By utilizing a deep-chamber rotor and the advanced rock-on-rock crushing principle, the material itself forms a protective layer that significantly reduces direct impact on metal parts. This design combined with high-chrome alloy wear tips extends service intervals by up to 30%, while the integrated hydraulic lifting system allows for rapid internal inspections, ensuring your production line maintains maximum uptime with minimal overhead costs.
Precise gradation control for diverse market demands
Total control over your final product is achieved through adjustable rotor speeds and variable feed systems that allow you to switch seamlessly between sand making and aggregate shaping. Whether you are producing 0–5 mm fine sand for mortar or 10–20 mm cubical stone for asphalt pavement, our machines provide the operational flexibility needed to adapt to shifting project requirements and maximize your yield per ton.
Aston vsi crusher for sale
Our company offers a complete range of vertical shaft impactors designed for high-capacity sand making and aggregate shaping in diverse quarrying environments. Whether you require a stationary unit for a permanent industrial plant or a mobile station for project-based flexibility, every model is engineered to maximize the production of spec-grade manufactured sand from hard rocks such as river pebbles and quartz. By focusing on the rock-on-rock crushing principle, our equipment ensures the highest quality particle shape while significantly lowering your daily operating expenses through reduced wear-part consumption and simplified maintenance routines.
Stationary vsi crusher
5x series stationary vsi crusher
Feeding size: ≤60mm
Finished products: 0-5mm spec-sand
Capacity: 70-640t/h
The 5x series is our flagship solution for large-scale industrial sand production and high-intensity aggregate shaping. Engineered with an optimized deep-chamber rotor and a rock-on-rock crushing chamber, this machine maximizes throughput while keeping wear-part consumption at an industry-leading minimum. Its integrated hydraulic lifting system and precision automation allow your team to maintain peak performance with minimal manual intervention, delivering a consistent cubical product that meets the most rigorous international construction standards.
Best for: large-scale industrial sand plants, high-spec aggregate shaping, and heavy-duty mineral processing lines.
Specifications of 5x vertical shaft impact crusher
| Model | 5X7615 | 5X8522 | 5X9532 | 5X1145 | 6X1150 | 6X1263 | |
| Capacity(t/h) | Cascade and Center Feeding | 150-280 | 240-380 | 350-400 | 413-442 | 450-545 | 550-640 |
| Center Feeding | 70-140 | 120-200 | 180-280 | 250-360 | 344-368 | 454-486 | |
| Feeder Opening Size(mm) | Soft Material | 35 | 40 | 45 | 50 | 45 | 50 |
| Hard Material | 30 | 35 | 40 | 45 | 55 | 60 | |
| Rotation Speed(r/min) | 1700~1900 | 1500~1700 | 1300~1510 | 1100~1310 | 1000~1300 | 900~1200 | |
| Power of the Double Motors (kW) | 110~150 | 180~220 | 260~320 | 400~440 | 440~500 | 600~630 | |
| Overall Dimension (mm) | 4100×2330×2300 | 4140×2500×2700 | 4560×2600×2900 | 5100×2790×3320 | 5700×2980×4190 | 5500×2750×3950 | |
| Power | 380V, 50Hz | ||||||
| Thin oil lubrication station | Power of Double Oil Pump | 2×0.25kW | |||||
| Safety | Double oil pumps make sure supply of oil;Stop automatically without oil flow or oil pressure;Water cooled; Heating start the motor in winter | ||||||
| Overall Dimension (mm) | 820×520×1270 | ||||||
| Power of Oil-box Heater Dimension (mm) | 2kW | ||||||

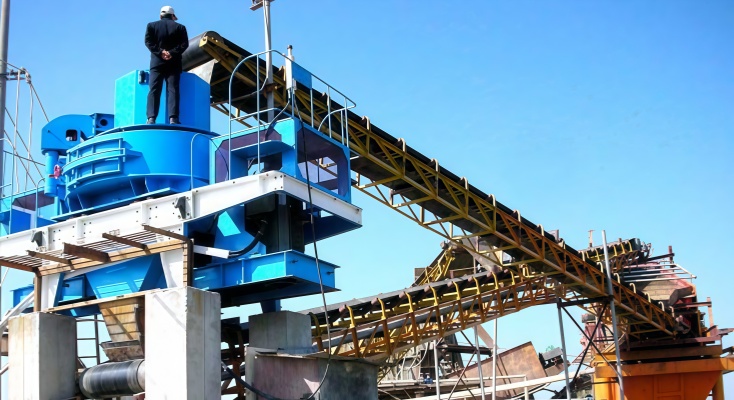

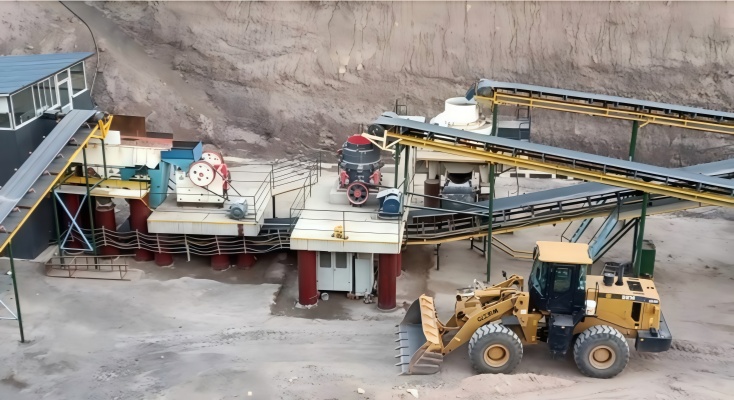

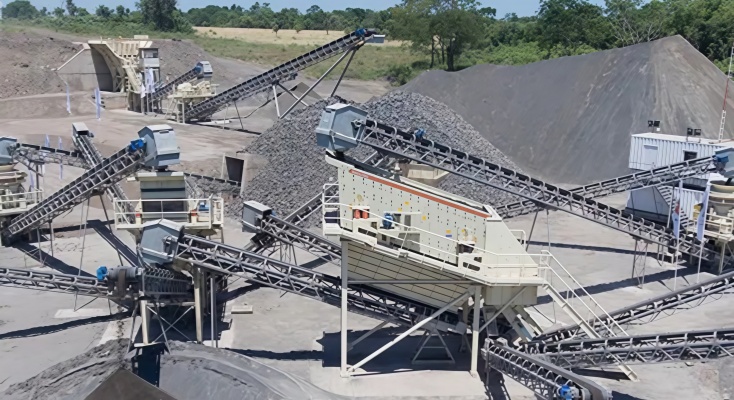

Stationary vsi crusher on-site operation:

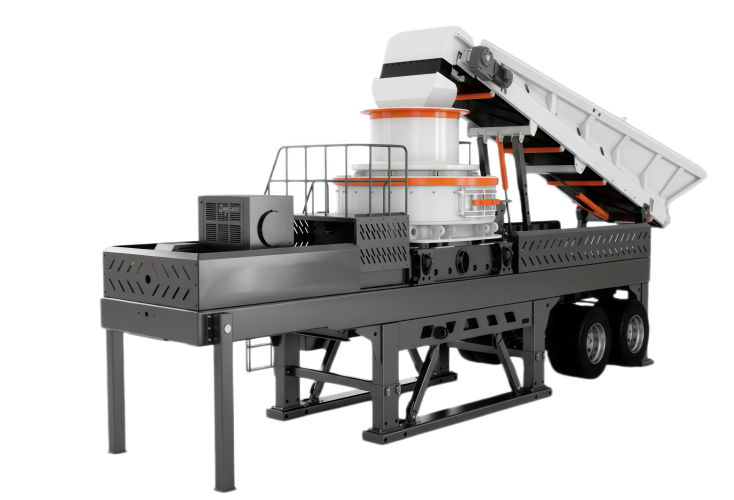

Tyre-mounted mobile vsi crusher
Mobile wheel type vsi crusher
Capacity: 50-400t/h
Feeding size: ≤50 mm
This mobile station is specifically designed to be the “final polisher” of your on-site production line, transforming flaky aggregate into perfectly cubical, high-value stone and manufactured sand. While standard mobile crushers focus on size reduction, our mobile vsi unit focuses on product quality, allowing you to meet the most stringent concrete and asphalt specifications directly at the project site. By integrating our rock-on-rock crushing technology onto a heavy-duty tyre-mounted chassis, we enable you to produce spec-grade m-sand from secondary crusher bypass or quarry waste, eliminating the high cost of transporting premium materials from stationary plants to remote infrastructure sites.
Best for: on-site recycling, project-based sand production, and remote sites requiring rapid deployment.
Specification of mobile wheel type vsi crushers
| Model | K3-V7615-1C | K3-V8522-1C | K3-V9532-1C | K3-V1145-1C |
| Belt feeder | B1000 | B1000 | B1200 | B1200 |
| VSI | VSI7615 | VSI8522 | VSI9532 | VSI1145 |
| Capacity(t/h) | 50-150 | 100-200 | 150-300 | 200-400 |
Mobile vsi crushing plant on-site operation:
Compare stationary and mobile vsi crushers
Stationary vertical shaft impact crusher
Mobile vertical shaft impact crusher
Installation method
Permanent installation on reinforced concrete foundations, integrated into long-term industrial lines.
Mounted on a heavy-duty tyre chassis with integrated feeder and conveyors for rapid onsite deployment.
Mobility
Fixed for the duration of the quarry life; relocation requires complete disassembly and new civil engineering.
Fully road-towable between sites; allows the machine to follow the project progress and keep production at the source.
Site requirements
Requires prepared concrete foundations, permanent electrical hookups, and dedicated screening infrastructure.
Operates on compacted ground or temporary sites; requires zero civil work and minimal setup time before production.
Production stability
Engineered for 24/7 continuous high-volume output with a stable power supply and consistent material feed.
Optimized for project-based demands and variable feed rates; easily adjusts to specific contract volumes.
Typical applications
Large-scale commercial sand plants, industrial mineral processing, and permanent aggregate production centers.
Highway and high-speed railway construction, remote infrastructure sites, and onsite stone reshaping contracts.
Shaping performance
High-precision gradation control for large batches of consistent, industrial-grade manufactured sand.
On-the-spot rectification of flaky or elongated materials to meet strict project specifications without transport delays.
Initial investment
Lower equipment cost per ton but involves significant upfront expenses for foundation and plant integration.
Higher machine price but eliminates foundation costs, trucking fees, and material re-handling expenses.
Best for
Producers running a single high-volume site for 5+ years where material comes to the machine.
Contractors moving between multiple infrastructure projects per year where the machine goes to the material.
Compare stationary and mobile vsi crushers
Stationary vsi crusher
Installation method
Permanent installation on reinforced concrete foundations, integrated into long-term industrial lines.
Mobility
Fixed for the duration of the quarry life; relocation requires complete disassembly and new civil engineering.
Site requirements
Requires prepared concrete foundations, permanent electrical hookups, and dedicated screening infrastructure.
Production stability
Engineered for 24/7 continuous high-volume output with a stable power supply and consistent material feed.
Typical applications
Large-scale commercial sand plants, industrial mineral processing, and permanent aggregate production centers.
Shaping performance
High-precision gradation control for large batches of consistent, industrial-grade manufactured sand.
Initial investment
Lower equipment cost per ton but involves significant upfront expenses for foundation and plant integration.
Best for
Producers running a single high-volume site for 5+ years where material comes to the machine.
Mobile vsi crusher
Installation method
Mounted on a heavy-duty tyre chassis with integrated feeder and conveyors for rapid onsite deployment.
Mobility
Fully road-towable between sites; allows the machine to follow the project progress and keep production at the source.
Site requirements
Operates on compacted ground or temporary sites; requires zero civil work and minimal setup time before production.
Production stability
Optimized for project-based demands and variable feed rates; easily adjusts to specific contract volumes.
Typical applications
Highway and high-speed railway construction, remote infrastructure sites, and onsite stone reshaping contracts.
Shaping performance
On-the-spot rectification of flaky or elongated materials to meet strict project specifications without transport delays.
Initial investment
Higher machine price but eliminates foundation costs, trucking fees, and material re-handling expenses.
Best for
Contractors moving between multiple infrastructure projects per year where the machine goes to the material.
Vertical shaft impact vsi crusher machine features:
- Deep-chamber rotor with high throughput: A specially engineered deep-chamber design increases the material handling volume and crushing efficiency. This high-inertia rotor ensures a stable material flow and consistent impact energy, allowing for significantly higher capacity even when processing the most abrasive hard rocks.
- Tungsten carbide wear tips and rock-on-rock technology: Our vsi utilizes the advanced rock-on-rock crushing principle where the material itself forms a protective layer. Combined with premium tungsten carbide wear tips, this design minimizes direct impact on metal parts and extends the service life of internal components by up to 1.5 times.
- Hydraulic lid-lifter for rapid maintenance: The integrated hydraulic lifting system allows a single operator to open the machine lid in minutes. This provides instant access to the rotor and internal wear parts, reducing routine inspection and replacement times from hours to a single shift, ensuring maximum operational uptime.
- Dual feeding system for precision gradation control: The flexible combination of center feeding and cascade feeding gives you total control over the crushing-to-shaping ratio. By adjusting the feed distribution and rotor speed, you can fine-tune the fineness modulus of your sand to meet the most rigorous project requirements.
- Advanced thin-oil lubrication station for continuous cooling: A dedicated dual-pump lubrication station ensures constant oil flow, cooling, and filtration for the main bearing. Automated sensors provide real-time monitoring of temperature and pressure, protecting the drive system from overheating and extending the overall lifespan of the machine.
Vsi crusher price
How much does a vsi crusher cost?
Our vsi crusher prices typically range from usd 40,000 to 450,000+, depending on the series, production capacity, and whether the unit is stationary or tyre-mounted. Because the hardness of your feed material and your target fineness modulus directly affect the machine configuration, the only way to get a precise number is through a custom quote—but the table below shows the indicative price brackets our customers typically see.
Indicative price ranges by configuration
| Configuration | Typical capacity | Indicative price (usd) | Best fit |
|---|---|---|---|
| 5x series stationary vsi | 70–280 t/h | 40,000–95,000 | Mid-sized commercial sand plants |
| Tyre-mounted mobile vsi (k3) | 50–200 t/h | 180,000–320,000 | Highway and high-speed rail projects |
Why an Aston quote is worth asking for
- Custom-engineered for your material. Every quote is calibrated against your specific rock hardness and target product gradation to ensure the motor and wear-package are perfectly sized.
- Factory-direct transparency. We manufacture all 5x, 6x, and k3 series in-house, so your quote reflects factory costs plus a single transparent margin with no middleman markup.
- Total cost of ownership clarity. Our quotes include estimated wear-part costs per ton and power consumption data, allowing you to compare long-term profitability, not just the sticker price.
- Rapid 24-hour response. Standard configurations receive a budgetary number within the same day, while complex engineered lines are finalized within one business day.
Versatile applications for vsi crushers
Our vsi technology serves as the primary production engine across multiple high-stakes industries where the precision of particle geometry determines the market value of the output.
In the commercial construction sector, it is the essential tool for producing high-spec manufactured sand that replaces scarce natural river sand in high-strength concrete for skyscrapers and mega-infrastructure.
For transportation projects, our machines are used to shape the premium, low-flakiness aggregate required for high-speed railway ballast and long-lasting asphalt highway pavement.
The equipment also dominates the industrial minerals market, refining raw quartz, silica, and feldspar into the consistent, fine-grained materials needed for glass, ceramics, and electronics manufacturing.
Furthermore, in large-scale mining operations, our vsi units act as an energy-efficient pre-grinding solution that significantly lowers the power consumption of ball mills. This cross-industry versatility ensures that your investment remains profitable by allowing you to supply any high-margin project that demands rigorous material standards.
Vsi crusher machine main components
Every vsi crusher is built around five core technical components that work in harmony to produce premium manufactured sand with minimum operational overhead. Understanding the engineering behind each part helps you select the right configuration for your specific material hardness and production goals.
The heart of our vsi technology, this reinforced rotor uses a deep-chamber design to increase throughput and optimize material trajectory. Precisely balanced to eliminate vibration at high speeds, it ensures consistent kinetic energy transfer for superior particle shaping while maintaining a stable flow for maximum production capacity across all material types.
Engineering value is found in the durability of our wear parts. Utilizing premium tungsten carbide for rotor tips and high-chrome alloys for internal protective liners, our wear package is designed to handle the most abrasive hard rocks. This advanced material selection significantly lowers your cost per ton by extending service intervals and reducing the frequency of unplanned part replacements.
This advanced feeding mechanism allows operators to adjust the ratio between center feeding and cascade feeding to fine-tune the final product gradation. By allowing a portion of the material to bypass the rotor and collide in the crushing chamber, it improves power efficiency and provides total control over the fineness modulus of your manufactured sand to meet strict project specifications.
High-speed operation requires world-class bearing protection. Our dedicated lubrication station features a dual-pump system that provides constant oil filtration and cooling to the main spindle assembly. Integrated electronic sensors monitor oil temperature and pressure in real-time, automatically triggering safety protocols to prevent mechanical failure and ensure the long-term reliability of the drive system.
Designed for maximum operational uptime, the hydraulic lid-lifter allows for effortless access to the internal crushing chamber. This system enables a single technician to perform rapid inspections and swap wear parts in a fraction of the time required by traditional machines, transforming complex maintenance tasks into simple, routine procedures that keep your production line running.
Compare hsi and vsi crushers
Horizontal shaft impactor (hsi)
Vertical shaft impactor (vsi)
Crushing mechanism
High-speed horizontal rotor with heavy blow bars that strike the incoming rock.
Vertical shaft rotor that accelerates material centrifugally into a stone bed.
Crushing principle
Mechanical impact: material is crushed by striking metal bars and impact aprons.
Rock-on-rock collision: material is crushed by colliding with other stones at high velocity.
Material hardness
Optimized for soft to medium-hard minerals like limestone, dolomite, and gypsum.
Engineered specifically for hard and abrasive rocks like granite, basalt, and river pebbles.
Reduction ratio
High reduction ratio (up to 30:1), often replacing a two-stage circuit in a single pass.
Lower reduction ratio; focuses on “finishing” rather than bulk size reduction.
Wear part economy
High wear cost in abrasive materials; metal blow bars are consumed rapidly by hard rock.
Extremely low wear cost in abrasive feeds due to the protective “rock-on-rock” bed.
Product shape
Produces good cubical aggregate, but quality can drop as blow bars wear down.
Produces superior, 90%+ cubical shape consistently across the entire life of the wear parts.
Typical circuit stage
Primary or secondary stage; focused on volume and initial size reduction.
Tertiary or quaternary stage; the final “polisher” for sand making and shaping.
Best for
High-volume aggregate production in limestone quarries and demolition recycling.
Spec-grade manufactured sand (m-sand) and shaping stone for high-spec infrastructure.
Compare hsi and vsi crushers
Horizontal shaft impactor (hsi)
Crushing mechanism
High-speed horizontal rotor with heavy blow bars that strike the incoming rock.
Crushing principle
Mechanical impact: material is crushed by striking metal bars and impact aprons.
Material hardness
Optimized for soft to medium-hard minerals like limestone, dolomite, and gypsum.
Reduction ratio
High reduction ratio (up to 30:1), often replacing a two-stage circuit in a single pass.
Wear part economy
High wear cost in abrasive materials; metal blow bars are consumed rapidly by hard rock.
Product shape
Produces good cubical aggregate, but quality can drop as blow bars wear down.
Typical circuit stage
Primary or secondary stage; focused on volume and initial size reduction.
Best for
High-volume aggregate production in limestone quarries and demolition recycling.
Vertical shaft impactor (vsi)
Crushing mechanism
Vertical shaft rotor that accelerates material centrifugally into a stone bed.
Crushing principle
Rock-on-rock collision: material is crushed by colliding with other stones at high velocity.
Material hardness
Engineered specifically for hard and abrasive rocks like granite, basalt, and river pebbles.
Reduction ratio
Lower reduction ratio; focuses on “finishing” rather than bulk size reduction.
Wear part economy
Extremely low wear cost in abrasive feeds due to the protective “rock-on-rock” bed.
Product shape
Produces superior, 90%+ cubical shape consistently across the entire life of the wear parts.
Typical circuit stage
Tertiary or quaternary stage; the final “polisher” for sand making and shaping.
Best for
Spec-grade manufactured sand (m-sand) and shaping stone for high-spec infrastructure.
What materials can our vsi crusher process?
Our vsi technology is optimized for high-abrasion hard rocks, industrial minerals, and precision aggregate shaping. The tables below categorize materials based on their crushing characteristics and the specific value our machines provide for each application.
Ideal materials — engineered for hard rock
These are the abrasive, high-hardness stones where our rock-on-rock technology delivers the highest roi by utilizing the material itself as a wear liner.
| Material | Mohs hardness | Value proposition | Typical application |
|---|---|---|---|
| River pebbles | 7–8 | Maximum wear protection | High-quality m-sand |
| Granite | 6–7 | Superior particle shape | High-strength concrete |
| Basalt | 6 | Precise gradation control | Railway ballast & asphalt |
| Quartzite | 7+ | Handles extreme abrasion | Industrial silica sand |
Why these work: the rock-on-rock crushing principle allows these hard materials to collide in mid-air or against a stone bed, reducing direct contact with metal parts and cutting wear-part costs by up to 30%.
Industrial & mining minerals — energy efficient
For industrial and mining sectors, the vsi acts as a high-speed fine crusher to improve downstream processing efficiency.
| Material | Processing goal | Key benefit | Output use |
|---|---|---|---|
| Iron/copper ore | Pre-grinding stage | Lower ball mill energy | Mineral liberation |
| Cement clinker | Fine crushing | Improved grinding throughput | Cement production |
| Quartz & silica | Iron-free crushing | Consistent particle size | Glass & electronics |
| Steel slag | Metal liberation | Efficient separation | Resource recovery |
Why these work: by producing a high percentage of fines and creating micro-cracks in the ore particles, our vsi units significantly reduce the power consumption required for final grinding.
Shaping & recycling — premium quality
When the priority is fixing the particle shape rather than raw size reduction, vsi technology transforms low-margin material into spec-grade aggregate.
| Material | Why vsi? | The result | Application |
|---|---|---|---|
| Limestone | Rectifies flaky particles | Cubical spec-grade stone | Ready-mix concrete |
| Dolomite | Consistency in fines | High-density filler | Chemical & construction |
| Recycled concrete | Removes old mortar | Clean, shaped aggregate | Sustainable road base |
Why these work: the high-velocity impact energy strips away weak edges and old mortar, resulting in a cubical, high-density product that meets the most rigorous international infrastructure standards.
Not recommended — choose a different machine
To ensure the longevity of your equipment, we do not recommend feeding the following materials directly into a vsi without proper pre-processing.
| Material condition | Primary risk | Better alternative |
|---|---|---|
| Large feed (>60 mm) | Rotor damage & blockage | Jaw or cone crusher |
| High moisture (>8%) | Chamber plugging | Pre-screening or drying |
| Sticky clay content | Blocked cascade system | Scalping screen or washer |
Not sure where your material fits?
Send us a sample analysis or a feed photo. ASTON application engineers will match your material to the right crusher type, the right wear-part package, and the right capacity — even if it means recommending a different machine in our portfolio.
Want to talk? Reach out to our experts
The critical role of vsi crushers in secondary crushing
In a professional sand and aggregate line, the tertiary stage is where raw stone becomes a premium-priced commodity. While jaw and cone crushers are great at reducing size, they are fundamentally “pressure machines” that often create internal cracks and flaky particles. That is where the vsi steps in—it is not a bulk crusher, but a finishing machine engineered to rectify particle shape and ensure your manufactured sand meets laboratory-grade specifications for high-strength concrete.
Where vsi crushers sit in the crushing circuit
Primary (Jaw)
Reduces rom (run-of-mine) material from 800 mm to 150 mm.
Secondary (Cone/Impact)
Reduces material to manageable aggregate sizes (20–40 mm).
Screening (separation)
5–25 mm
Tertiary (VSI Finishing)
The “polishing” phase where material is shaped into 0–5 mm sand or cubical 10–20 mm stone.
Three things only a vsi crusher does well at the secondary stage
- Shape rectification for premium pricing. Cone crushers squeeze rock until it snaps, often producing elongated splinters that fail concrete workability tests. A vsi uses high-velocity impact to shatter rocks along their natural cleavage planes, delivering a 90%+ cubical product that allows your customers to use less cement while achieving higher concrete strength.
- Precision control of the fineness modulus. Most crushers give you whatever size the discharge gap allows. Our vsi uses a “cascade” feeding system, allowing you to bypass a portion of the material to fine-tune the percentage of fines in your sand. This ensures you meet the strict gradation curves required for high-speed rail and airport runway projects without constant screen changes.
- Lowering wear costs in high-abrasion rock. In granite or basalt, metal-to-rock contact eats through liners in days. The vsi utilizes a “rock-on-rock” chamber where the stone itself forms a protective bed. This means 70% of the crushing happens between rocks, not against your machine’s metal parts, dramatically lowering your operating cost per ton in hard rock applications.
When a vsi replaces a fine-head cone circuit
For producers aiming for high-spec m-sand (manufactured sand), using a vsi instead of a fine-head cone crusher is a major revenue lever. The economics of a 200 t/h granite sand plant typically look like this:
| Performance metric | Fine-head cone circuit | Vsi finishing circuit |
|---|---|---|
| Product shape | Flaky & elongated (15–25%) | Cubical & rounded (<8%) |
| Liner/tip wear life | Low in hard rock (200–400 hours) | High in rock-on-rock (800–1,200 hours) |
| Cement savings (downstream) | None | 10–15% reduction for concrete plants |
| Market value of sand | Standard construction grade | Premium-priced high-spec sand |
For a 300,000 t/year sand plant, switching to a vsi for finishing typically increases the net profit by usd 1.50–2.00 per ton due to the premium quality of the output.
Where vsi crushers don’t belong
An honest answer from a factory perspective: do not buy a vsi if your project falls into these categories:
- Primary crushing: A vsi cannot handle rocks larger than 60 mm. Feeding it rom material will instantly destroy the rotor.
- Non-abrasive, bulk production: If you are crushing soft limestone only for road base and shape doesn’t matter, a standard impact crusher (hsi) is cheaper and has a higher reduction ratio.
- High-moisture/sticky feed: If your material contains more than 8% moisture or heavy clay, the cascade system and rotor will plug up, causing significant downtime.
If your goal is to produce the best sand in your local market and secure high-value infrastructure contracts, the vsi is the most important specification decision in your circuit. Done right, it is the machine that pays for itself fastest by turning your bypass material into your most profitable product.
About aston machine
Setting new standards in crushing efficiency.
Our technological edge lies in multi-cylinder hydraulic designs and highly optimized crushing cavities. By automatically adapting to load variations and maximizing rock-on-rock crushing action, ASTON systems guarantee superior reduction ratios, minimizing the need for secondary processing stages.
Working process of vsi crusher
Understanding the mechanical process of a vsi is essential for optimizing your plant’s efficiency. Unlike traditional crushers that rely on mechanical pressure, the vsi uses kinetic energy and material-on-material impact. This “consultative” breakdown explains how each stage of the process is designed to maximize your product quality while minimizing your wear costs.
The process begins at the top hopper, but the real engineering happens at the distributor. Our system allows for “dual feeding”—you can send 100% of the material through the rotor for maximum crushing, or use the “cascade” feature to let a portion of the rock fall outside the rotor. As a producer, this is your primary lever for controlling the fineness modulus; by adjusting the cascade gate, you decide the exact balance between making new sand and simply shaping existing aggregate to meet your client’s spec sheet.
Once the material enters the heart of the machine—the deep-chamber rotor—it is accelerated to peripheral speeds of 50–90 meters per second. This stage is all about kinetic energy. The rotor is precisely balanced to ensure that even at these extreme velocities, there is zero vibration that could damage the bearings. This acceleration ensures that every particle has enough energy to shatter upon impact, regardless of whether it is hard river pebble or abrasive granite.
This is where the vsi saves you money. Instead of the material striking a metal anvil (which would wear out in days), it is launched into a “crushing chamber” lined with a natural bed of your own material. This is the “rock-on-rock” principle: the accelerated stones collide with a dense wall of stationary stones. Because the rock is crushing itself, the consumption of expensive metal wear parts is reduced by up to 70%, protecting your margins in high-abrasion applications.
During the collision, the particles are subjected to intense multi-directional forces. This doesn’t just reduce size; it “rectifies” the shape. Any weak edges, elongated points, or internal fractures are knocked off, leaving only the strongest, most cubical cores. For a professional producer, this is the “value-add” stage—it’s what transforms your ordinary crushed stone into the premium-priced, high-density aggregate that high-spec concrete plants are willing to pay more for.
After impact, the finished product falls through the bottom of the crushing chamber by gravity. The design of the discharge area is optimized to prevent material buildup and ensure a constant air-flow, which helps cool the internal components. The result is a continuous flow of spec-grade sand and shaped stone, ready for final screening. Because the process is so efficient, the vsi produces a much higher percentage of “usable” material than a fine-head cone, meaning less waste in your stockpile.
The “sweet spot” of a vsi lies in its rotor speed. Too slow, and you won’t achieve the cubical shape needed for high-spec contracts; too fast, and you will produce excess “dust” that increases your waste percentage. When we configure your quote, we calculate the exact rotor velocity based on your rock’s abrasion index to ensure you get the maximum yield of sellable sand from every ton of feed.
Engineered to maximize your profitability
$3–6 / tonn
Premium sand price advantage
The 90%+ cubical particle ratio produced by our vsi series meets the most stringent en, astm, and gb shape specifications for high-performance concrete. This allows you to sell your manufactured sand at a usd 3–6 premium per ton compared to unshaped crusher dust or low-grade aggregate. On a 300,000 t/year operation, this “quality premium” alone translates into an additional usd 900,000–1,800,000 in annual revenue from the exact same feed material.
4 hrs → 45 min
Reduced maintenance downtime
Our integrated hydraulic lid-lifter eliminates the need for external cranes and heavy manual labor during routine inspections. A full rotor tip inspection and replacement can be completed in just 45 minutes by a single technician, down from a typical 4-hour manual shutdown required by traditional machines. At a production value of usd 500/hour for a mid-sized plant, every maintenance cycle saves you usd 1,625 in recovered output and keeps your production schedule on track.
1.5x longer
Service life of wear parts
By combining our advanced rock-on-rock crushing chamber with premium tungsten carbide rotor tips, we extend the service life of internal components by up to 50% compared to industry-standard manganese parts. For a typical granite or river pebble operation, this reduces your annual wear-part expenditure by usd 25,000–60,000. By choosing superior metallurgy and “stone-on-stone” protection, you cut your wear-related shutdowns in half and protect your operational margins shift after shift.
FAQs
Below are answers to some of the most common questions when selecting and operating a vsi crusher.
Vsi stands for vertical shaft impactor. It is a specialized machine that uses a high-speed rotor to accelerate material, causing it to crush against itself or a stationary anvil to produce high-quality sand and shaped aggregate.
Cone crushers use compression force to squeeze rock, which can produce flaky particles. Vsi crushers use high-velocity impact to shatter rock along natural cleavage planes, resulting in perfectly cubical, high-spec aggregate.
It depends on your goal. Roller crushers are used for soft, friable materials with low abrasion. Vsi crushers are far superior for producing spec-grade manufactured sand and shaping hard, abrasive rocks like granite or basalt.
Vsi aggregate is perfectly cubical with no internal fractures. This shape improves concrete workability, increases the strength of asphalt mixes, and allows concrete plants to reduce cement consumption by up to 15%.
Vsi crushers are tertiary machines and require a pre-crushed feed. The maximum feed size typically ranges from 30 mm to 60 mm depending on the model and the hardness of the material.
Non-vsi crushers like jaw or cone units primarily focus on size reduction through pressure. Vsi crushers focus on “finishing”—improving the geometric shape of the stone and producing high-grade sand that meets international standards.
The fineness modulus is controlled by adjusting the rotor speed and the cascade feeding ratio. Increasing the speed produces more fines, while the cascade system allows you to fine-tune the particle size distribution.
The main wear parts are the rotor tips, back-up tips, upper and lower wear plates, and the distributor cone. We use premium tungsten carbide and high-chromium alloys to maximize service life in abrasive conditions.
