ASTON Mobile Sand Making Plant: Engineered for Superior Shaping & High-Value Sand Production
Streamlining fine reduction and particle shaping into a single mobile pass, ASTON sand making plants efficiently reprocess quarry fines, crushed gravel, and stone chips into continuous-graded manufactured sand. Site operators can rapidly deploy this unit to supply top-tier fine aggregates for high-strength concrete, asphalt mix plants, and critical infrastructure
At the core of the heavy-duty chassis sits a high-performance vertical shaft impactor (VSI), leveraging advanced “rock-on-rock” and “rock-on-anvil” kinetic crushing principles. This dynamic impaction process, complemented by automated system protection and wear-resistant rotors, consistently yields exceptional cubical particle shape while keeping fineness modulus precisely within required specifications.
Positioned right downstream of primary or secondary crushers, the mobile VSI plant integrates smoothly with portable washing and screening systems to close the production loop. Through real-time load regulation and intelligent material recirculation, it minimizes energy consumption per ton while maximizing daily throughput of premium manufactured sand.
Feed specifications & finished aggregate output
Feeding size: ≤50mm
Finished products size: ＜5mm
Capacity: 50-500t/h
Coarse stone
Middle size stone
Fine stone
Application field of mobile sand making crusher
Material
Suitable for processing natural river pebbles, hard rocks (including limestone, granite, basalt, diabase, and andesite) for artificial sand making, as well as industrial ore tailings and quarry stone chips for sustainable material recycling.
Application
Mainly used in highways, railways, airport runways, mines, coal mines, construction, garbage and construction waste recycling, hydropower projects, urban infrastructure, roads or construction sites and other operations that need to be relocated and have strong mobility.
Mobile sand making crusher features:
- High flexibility & modular combination: Engineered for maximum operational versatility, our mobile sand making crusher can run as independent crushing / screening stations or be combined into custom multi-stage plants. Integrated side-loading hoppers and conveyors allow effortless adaptation to varied material transfer setups.
- Tailored & efficient processing workflows: From tough hard rock to fine aggregates, the system offers customizable process flows. Stations can operate individually or in sync, giving operators the agility to meet precise site demands and product specifications.
- Fully integrated circuit design: Seamlessly combining secondary crushing, high-precision screening, and automated conveying on a unified chassis, the plant delivers an end-to-end, high-throughput material processing loop.
- Minimized transport & operational costs: On-site processing eliminates the expensive and logistical hassle of hauling raw materials to off-site crushing plants, directly reducing operational overhead and diesel consumption.
Specification of mobile sand making crusher:
| Model | Crusher model | Vibrating screen | Max feed size (mm) | Number of axles | Main conveyor | Capacity (t) | Transportation dimension (mm) |
| VPX8522 | 5X8522 | YA1860 | <40 | 3 | B650 | 120-380 | 14200x3000x4500 |
| VPX9532 | 5X9532 | YA2160 | <45 | 3 | B800 | 180-540 | 14500x3000x4500 |
Materials processed by mobile sand making crusher
Basalt
Granite
Limestone
Andesite
Pebble
Quartz
Copper ore
Gold ore
Iron ore
Cement clinker
Sandstone
Dolomite
Versatile applications for mobile sand making crusher
Engineered for multi-material adaptability—from natural river pebbles to quarried stone chips—ASTON mobile sand making plants perform high-efficiency fine crushing and precision shaping right at the operational face.
Direct on-site sand manufacturing and aggregate refinement significantly reduce intermediate material haulage, ensuring a steady stream of continuous-graded, high-spec manufactured sand for strict construction standards.
Typical application areas
Manufactured sand production:
Converting river pebbles, granite, basalt, and limestone chips into high-grade manufactured sand with precise fineness modulus control.
Quarrying & Aggregate shaping:
Tertiary fine crushing and cubical shaping for aggregate plants, eliminating flat and elongated particles to produce premium concrete feed.
High-standard infrastructure projects:
On-demand production of high-spec fine aggregates for highway paving, high-speed railway ballast, and high-strength concrete batching.
Industrial mineral & tailings processing:
Reprocessing fine ore tailings and quarry waste materials, transforming low-value industrial by-products into high-value commercial sand without off-site transport.
Explore industrial applicationsWorking process of mobile sand making crusher

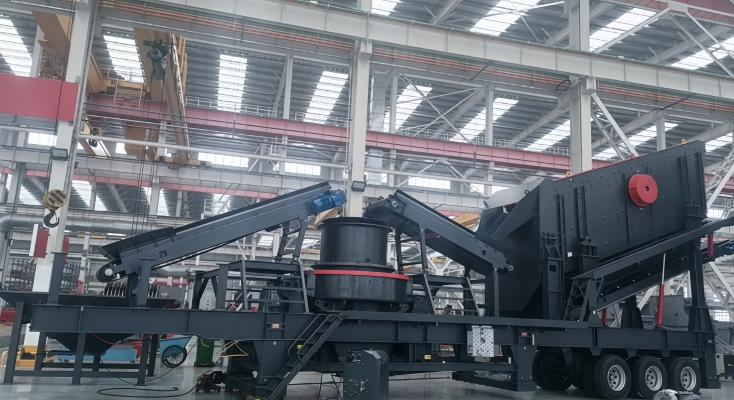

Mounted on a single heavy-duty chassis, the ASTON mobile sand making plant combines an automated feeder, a high-efficiency vertical shaft impactor (VSI), and a multi-deck screen into an all-in-one processing circuit. This fully integrated setup controls raw material feed, applies targeted kinetic collision, and generates continuous-graded, high-spec manufactured sand with minimal manual intervention.
The heavy-duty feeder smoothly receives secondary crushed rocks or quarry stone chips. Integrated load-sensing controls continuously regulate feed velocity, ensuring a stable, choke-fed stream into the VSI host for maximum impaction efficiency.
Before entering the rotor, integrated prescreening decks strip out natural fines and already-qualified manufactured sand. Bypassing undersized particles prevents over-crushing, protects internal wear parts, and optimizes total energy consumption.
Materials enter the high-speed rotor and are accelerated to perform intensive “rock-on-rock” or “rock-on-anvil” collision. This dynamic kinetic process breaks materials along natural fault lines, producing highly cubical particles with a controlled fineness modulus.
The impacted output is smoothly transferred to an integrated multi-deck screen to classify different sand grades and coarse aggregates. Optimized conveyor drop heights minimize dust generation and material spillage during transfer.
Oversized stone chips that exceed specification limits are automatically recirculated back into the VSI crushing chamber via a closed-loop return conveyor, guaranteeing 100% aggregate compliance with strict site specs.
