European impact crusher

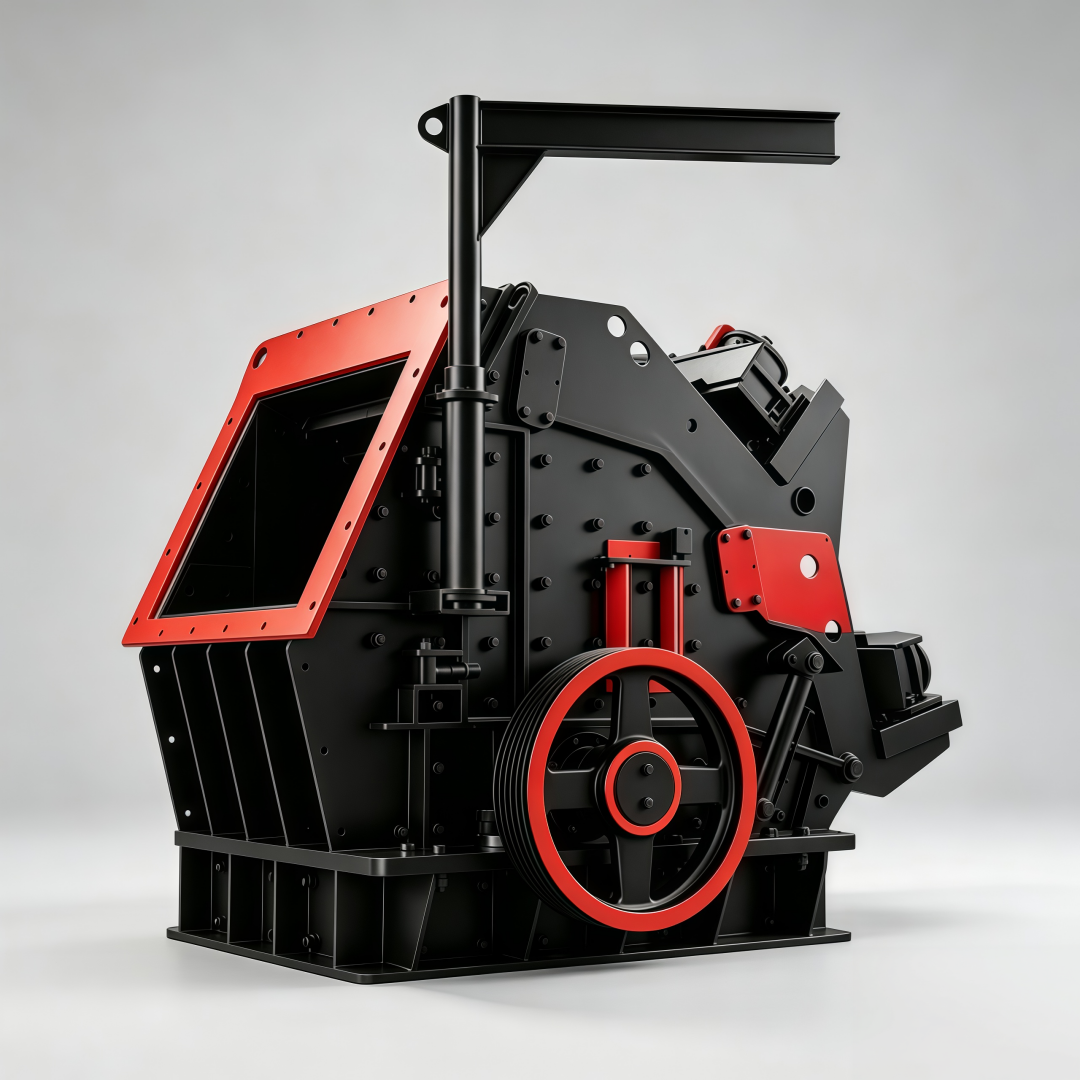

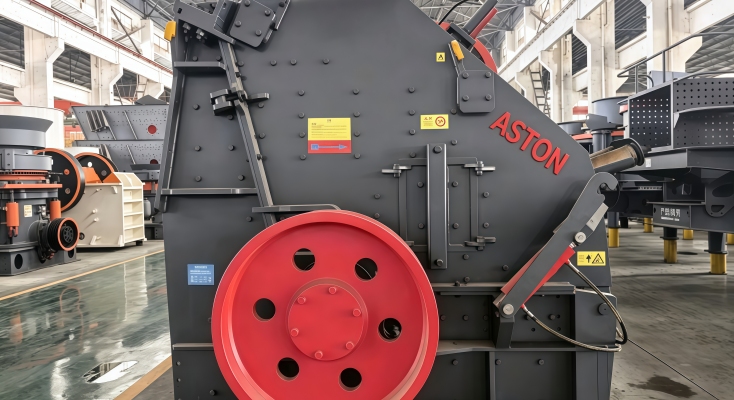

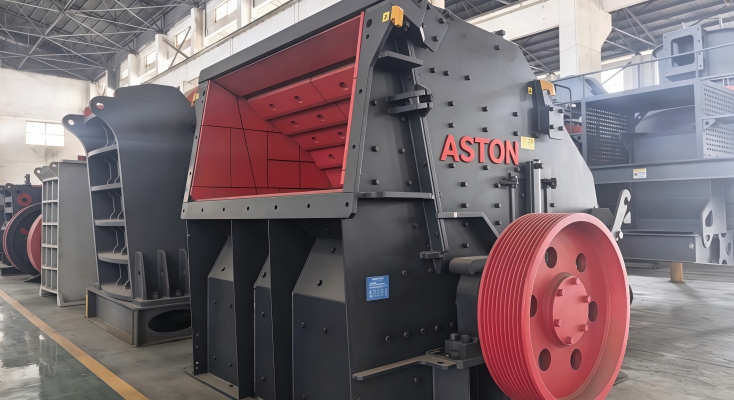

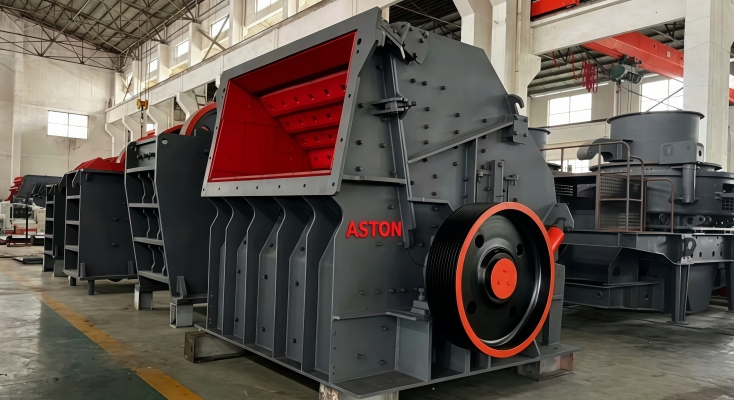

ASTON European Impact Crusher: Delivering High-Efficiency Multi-Stage Reduction
Designed for versatile size reduction, the ASTON European impact crusher operates efficiently across mining, metallurgy, cement, chemical, and refractory industries. Offering comprehensive primary, secondary, and fine crushing capabilities, it provides a highly reliable processing solution for highway construction, water conservancy projects, and manufactured sand plants.
Engineered specifically for soft to medium-hard rock formations, this advanced impact crusher incorporates an optimized crushing cavity and a heavy-duty rotor assembly. This structural design ensures exceptionally high reduction ratios, uniform cubical particle shapes, and long-term operational durability under continuous heavy-load conditions.
Serving as a core reduction unit in aggregate and industrial processing lines, the European impact crusher integrates seamlessly with upstream feeders and downstream screening systems. Its refined impact rack adjustments and optimized material flow prevent bottlenecks, delivering a steady, high-volume output that maximizes the profitability of overall processing circuits.
Maximum feed size: 200~550mm
Power range: 45~250kw
Capacity: 15~450t/h
Price: 2100-70000usd
Coarse stone
Middle size stone
Fine stone
Application field of European impact crusher
Material
Capable of processing a wide selection of soft to medium-hard ores and materials—including limestone, gypsum, dolomite, sandstone, coal gangue, and recycled concrete rubble—delivering exceptional cubical particle shapes and uniform sizing across all aggregate processing circuits.
Application
Mainly used in highway paving, high-speed railway bed construction, water conservancy engineering, manufactured sand processing, mining, cement production, chemical sector, and refractory material processing where precise aggregate gradation and high reduction efficiency are required.
European impact crusher features:
- High reduction ratio & Streamlined processing: Capable of achieving reduction ratios up to 40:1, allowing plants to convert complex three-stage crushing circuits into two-stage or single-stage lines to lower capital costs.
- Cubical particle shaping & Stringent aggregate standards: Selective crushing action produces uniform, cubic stone aggregates with minimal flakiness, fully meeting high-grade road, airport, and railway construction specifications.
- Multifunctional hydraulic system & Quick discharge control: Equipped with an integrated hydraulic station for automated body opening, stable vibration damping, and effortless gap adjustment to calibrate product size.
- Heavy-duty wear alloy & Simplified maintenance: Key blow bars and impact plates are manufactured from high-strength wear-resistant materials, extending service life and streamlining replacement to minimize downtime.
Specification of European impact crusher:
| Two-cavity impact crusher | |||||
| Model | Feed size (mm) | Capacity (t) | Power (kw) | Dimensions (mm) | Weight (t) |
| PFW1007-Ⅱ | 300 | 40-90 | 45-55 | 2130x1530x1700 | 17 |
| PFW1010-Ⅱ | 350 | 70-120 | 55-75 | 2130x1830x1700 | 22 |
| PFW1210-Ⅱ | 400 | 100-160 | 90-110 | 2550x1940x2110 | 17 |
| PFW1214-Ⅱ | 450 | 130-200 | 132-160 | 2550x2340x2110 | 22 |
| PFW1315-Ⅱ | 500 | 180-320 | 160-200 | 2720x2460x2410 | 29 |
| PFW1320-Ⅱ | 550 | 230-450 | 200-250 | 2720x3060x2410 | 38 |
| Three-cavity impact crusher | |||||
| Model | Feed size (mm) | Capacity (t) | Power (kw) | Dimensions (mm) | Weight (t) |
| PFW1007-Ⅲ | 200 | 15-60 | 45-55 | 2130x1530x1700 | 9 |
| PFW1010-Ⅲ | 200 | 50-90 | 55-75 | 2130x1830x1700 | 12 |
| PFW1210-Ⅲ | 250 | 70-140 | 90-110 | 2550x1940x2110 | 15 |
| PFW1214-Ⅲ | 250 | 90-190 | 132-160 | 2550x2340x2110 | 19 |
| PFW1315-Ⅲ | 300 | 120-280 | 160-200 | 2720x2460x2410 | 25 |
| PFW1320-Ⅲ | 300 | 160-350 | 200-250 | 2720x3060x2410 | 31 |
Applicable materials for European impact crusher
Dolomite
Sand stone
Limestone
Marble
Gypsum
Shale
Recycled concrete
Coal gangue
Phosphate rock
Asphalt pavement
Brick & Waste tile
Construction waste
Versatile applications for European impact crusher
Engineered for superior size reduction and precise cubical particle shaping, ASTON European impact crushers perform reliably across quarries, mineral processing plants, and heavy industrial facilities.
The unique impact energy dynamics allow operators to streamline multi-stage crushing circuits, significantly cutting energy consumption while ensuring a continuous supply of high-grade aggregates.
Typical application areas
Cement & Non-metallic mineral extraction:
Drives primary and secondary crushing of raw materials like limestone, gypsum, and clay, supplying optimized feed sizes for cement kilns and mineral processing.
High-specification aggregate & sand production:
Delivers high-capacity shaping for rock quarries and manufactured sand plants, producing premium, fracture-free cubical gravel that meets rigid asphalt and concrete standards.
Transportation & Civil infrastructure construction:
Processes targeted rock formations directly for high-speed rail ballast, highway surface courses, and large-scale water conservancy dams.
Refractory & Chemical material processing:
Executes fine crushing and uniform particle reduction on materials such as bauxite, dolomite, and ceramic raw materials required for high-temperature industrial uses.
Explore industrial applicationsWorking process of European impact crusher
The ASTON European impact crusher operates through a seamless, step-by-step reduction process designed for high-capacity aggregate production. From initial material feeding into the crushing chamber, to high-speed blow bar impact, multi-stage plate rebounding, and final calibrated discharge, this integrated workflow transforms raw rock into high-quality cubical stone while ensuring a steady, continuous material flow for downstream processing lines.
Raw material enters the heavy-duty crushing chamber and immediately intercepts the path of the high-speed rotating rotor. Heavy-duty blow bars strike the incoming rock with immense kinetic energy, initiating immediate primary fracture.
Propelled by intense centrifugal kinetic force, the shattered rock fragments are hurled against high-manganese impact plates lining the chamber. This high-density rebounding action induces secondary fracturing and continuous particle-on-particle collision.
As material circulates within the optimized crushing cavity, dense turbulence is generated between the rotor zone and impact racks. The rock undergoes multiple high-frequency blows until it reaches the targeted particle size.
Fully crushed cubic stone passes through the adjustable discharge gap between the rotor and impact aprons. The resulting end-product features low internal tension, minimal flakiness, and highly uniform particle gradation.
European impact crusher main components
The ASTON European impact crusher is engineered with heavy-duty structural elements to withstand high-kinetic impacts and harsh crushing environments. Key internal components—including the main shaft, rotor assembly, impact frames, lining plates, spring assemblies, and safety locking blocks—are precisely integrated to ensure maximum operational uptime and simplified replacement.
Optimized for high metal utilization and swift installation, the blow bars are cast from premium high-chromium iron or manganese alloy steel. This heavy-duty metallurgy delivers exceptional wear resistance against intense impact and thermal stress.
Engineered through precise heat-treatment techniques, these compaction blocks maintain consistent chemical stability and ultra-high tensile strength, securely locking the blow bars to the rotor under heavy centrifugal force.
Constructed from welded heavy steel plate and lined with replaceable wear resistant liners. Option for grate-slotted impact surfaces allows fine particles to bypass the chamber early, boosting throughput while optimizing energy consumption.
Utilizing heavy-walled seamless and seam-welded square steel tubing, this structural frame reinforces internal impact housing and support beams, providing high torsional rigidity against continuous mechanical vibrations.
