Mobile jaw crushing plant

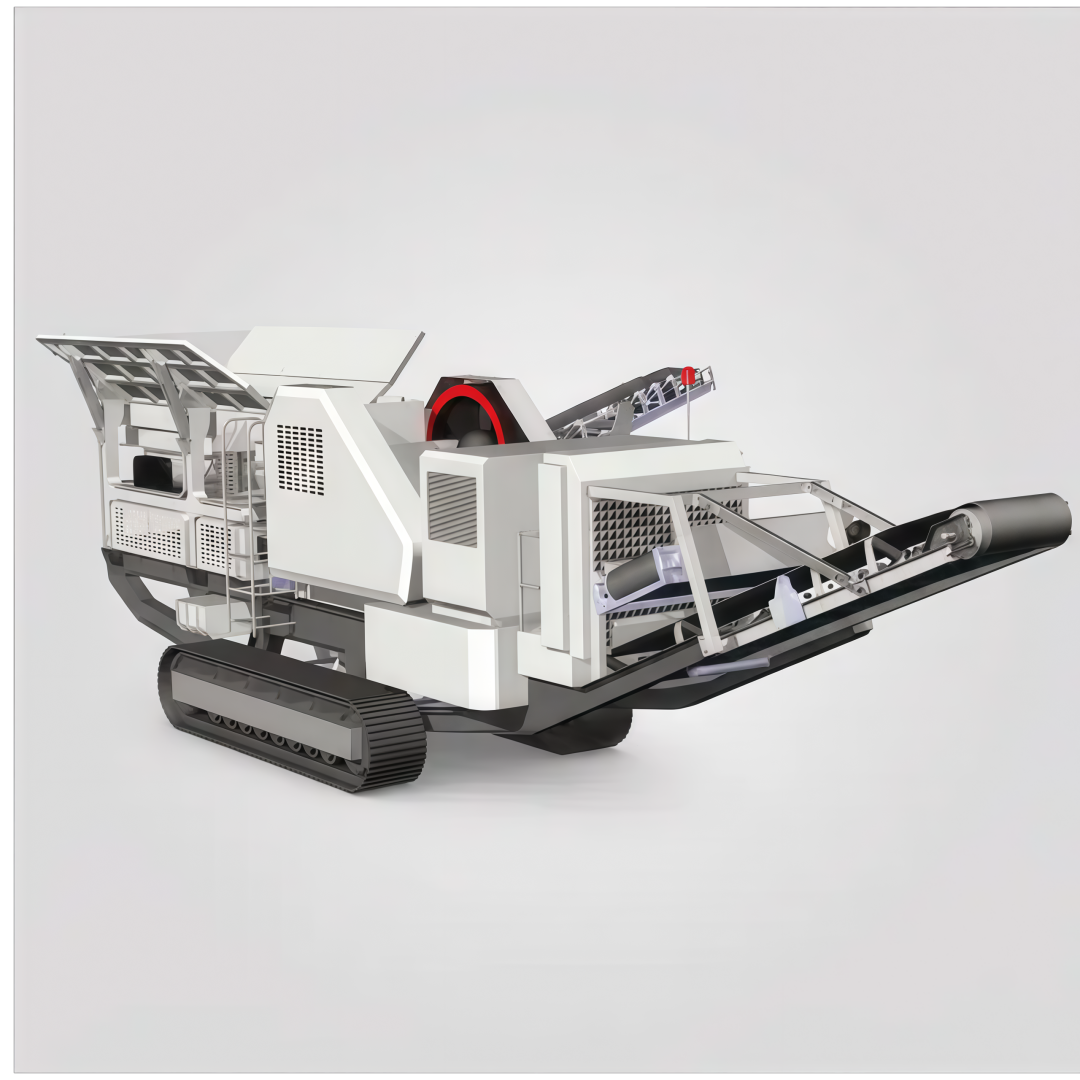

ASTON Mobile Jaw Crusher: Delivering High-Mobility Primary Crushing
Designed for high-capacity primary stone crushing, the ASTON mobile jaw crusher operates seamlessly across narrow jobsites and rugged terrains. With versatile transportability and robust crushing power, it provides a reliable, on-site processing solution for highway construction, mining, hydropower development, and industrial recycling projects.
Standardized with a high-rigidity ship-shaped chassis, this plant lowers ground pressure and maneuvers smoothly through narrow pathways and harsh terrains. At its core, the advanced 6CX series jaw crusher features an optimized crushing chamber and heavy-duty eccentric shaft, delivering maximum reduction ratios, high throughput, and long-term durability under heavy-load operation.
Serving as the vital primary stage in aggregate circuits, this mobile jaw crushing plant integrates seamlessly with downstream secondary crushing and screening units. Its adjustable discharge conveyors and optimized material flow design prevent bottlenecks, delivering a continuous, high-volume feed that maximizes the overall efficiency of multi-stage processing lines.
Feed specifications & finished aggregate output
Feeding size: ≤750mm
Finished products size: 15~165mm
Capacity: 45-500t/h
Coarse stone
Middle size stone
Fine stone
Application field of mobile jaw crusher
Material
Capable of processing a wide range of materials—from abrasive hard rocks like granite, basalt, iron ore, river pebbles, and cobblestones, to limestone, marble, shale, lapis, coal, and urban construction waste—delivering high-efficiency size reduction across all job sites.
Application
Mainly used in highways, railways, airport runways, mines, coal mines, construction, garbage and construction waste recycling, hydropower projects, urban infrastructure, roads or construction sites and other operations that need to be relocated and have strong mobility.
Mobile jaw crusher features:
- Low transportation & Logistics costs: Crushing materials directly on-site eliminates the need for long-distance haulage, significantly cutting raw material transport costs.
- Robust compact structure & Strict quality testing: Featuring a streamlined, robust, and compact structural design, every unit undergoes rigorous multi-stage quality inspections to ensure long-term operational reliability.
- High-wear resistant alloys & Easy maintenance: Key wear parts are crafted from ultra-hard, wear-resistant alloy materials. Their compact, lightweight design allows for quick, hassle-free replacement, minimizing downtime.
- Flexible & modular configurations: The system can operate standalone or be seamlessly integrated into two-stage or three-stage crushing circuits to adapt to diverse production requirements.
Specification of mobile jaw crusher:
| Model | Device configuration | Adjustable range of discharge opening (mm) | Capacity (t/h) | Transport dimension (mm) |
| AS15L | ZSW3896+LF150 | 40-100 | 100-200 | 13050X2950X3100 |
| AS25L | ZSW4211+LF250 | 50-120 | 200-400 | 12750X3000X3700 |
| AS35L | ZSW4213+LF350 | 50-200 | 300-500 | 14360X3000X3800 |
| AS69L | ZSW3896+PE69 | 60-125 | 100-180 | 12500X2950X3000 |
| AS96L | ZSW3896+SC96 | 60-175 | 120-455 | 13500X3400X2800 |
| AS106L | ZSW4211+SC106 | 70-200 | 155-580 | 14400X3600X3000 |
| AS110L | ZSW1349+SC110 | 70-250 | 190-625 | 18470X6840X4700 |
Materials processed by mobile jaw crusher
Basalt
Granite
Limestone
Marble
Pebble
Quartz
Copper ore
Gold ore
Iron ore
Lead zinc ore
Molybdenum ore
Nickel ore
Versatile applications for mobile jaw crusher
Whether deployed for quarrying hard rock or recycling urban demolition debris, ASTON mobile jaw crusher deliver exceptional primary crushing performance right where the material lies.
By executing initial size reduction directly on-site, these systems cut out long-distance transportation costs while maintaining a steady, high-quality material supply for subsequent processing.
Typical application areas
Mining operations:
Primary crushing of hard, abrasive ores (granite, basalt, iron ore) in remote or rapidly expanding mining environments.
Quarrying & aggregate production:
First-stage, at-source crushing for aggregate plants, offering rapid site relocations and high-throughput production.
Construction & infrastructure projects:
On-demand crushing of local limestone, river stone, and paving materials for highway and urban development.
Recycling & demolition (C&D):
Direct processing of concrete rubble and masonry waste, transforming urban debris into high-value recycled aggregate without off-site hauling.
Explore industrial applicationsWorking process of mobile jaw crusher
A mobile jaw crushing plant delivers a seamless, highly integrated workflow designed for primary on-site crushing. Combining a vibrating feeder, jaw crusher host, and discharge conveyor on a unified chassis, the plant efficiently feeds raw materials, performs primary size reduction, and transfers crushed output—ensuring continuous, reliable operation for downstream processing lines.
After quickly maneuvering to the jobsite, the heavy-duty vibrating feeder receives large raw rocks directly from excavators or dump trucks. It delivers a steady, regulated material stream into the processing line, preventing surge loads and ensuring maximum operational continuity.
Integrated grizzly bars on the feeder separate fine undersize material and natural dirt before entering the crushing chamber. By bypassing non-crushable fines, this step prevents jaw packing, reduces liner wear, and significantly boosts overall crushing efficiency.
Oversized hard rock enters the deep V-shaped crushing chamber of the jaw crusher host. Driven by a heavy-duty eccentric shaft and optimized toggle plate angle, the moving jaw applies intense, repeated compressive force against the fixed jaw plate to fracture the stone.
As the material systematically descends under gravity through high-pressure crushing cycles, it is progressively reduced until reaching the target gap size (CSS) for continuous discharge.
Crushed material is screened into different size fractions using vibrating screens. Oversized material can be returned to the secondary crusher, while qualified material proceeds to final stockpiling.
The discharge conveyor transfers the coarsely crushed material directly to stockpiles or seamlessly feeds it into secondary equipment—such as mobile impact crushers, cone crushers, or screening plants—to complete multi-stage processing.
