European jaw crusher

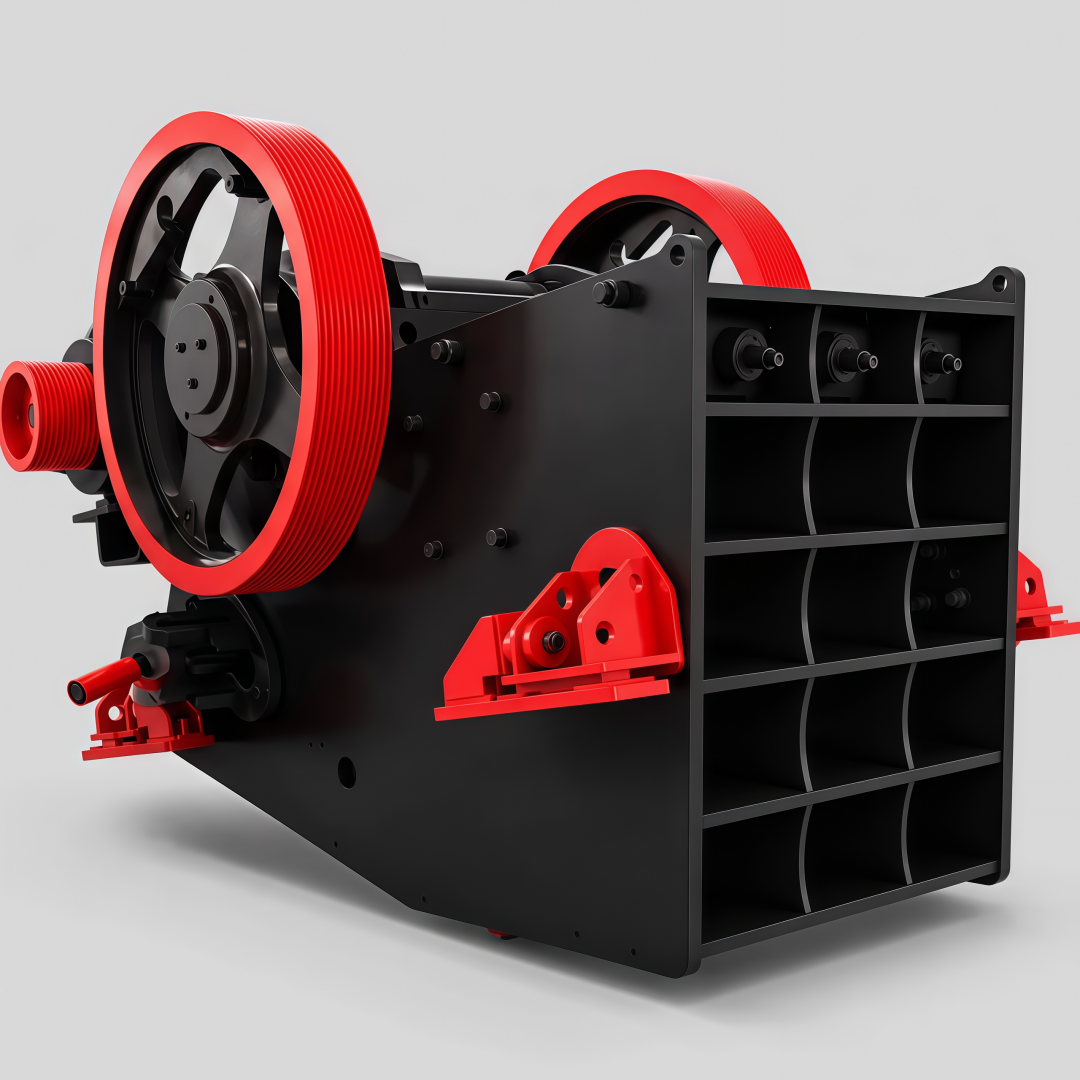

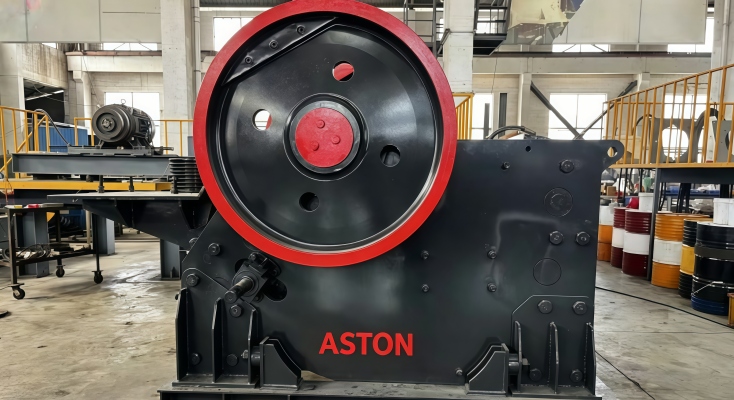

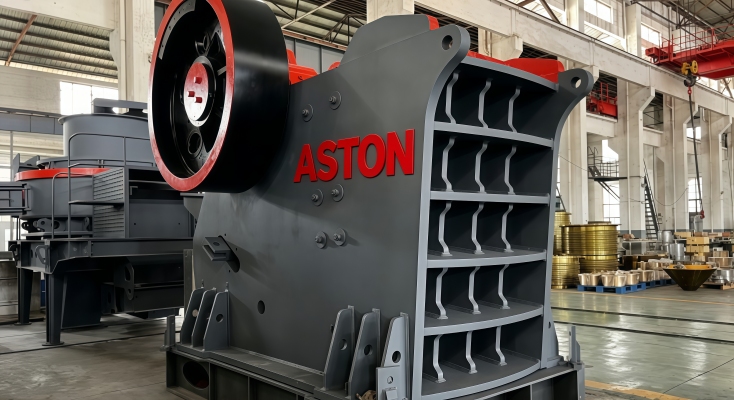

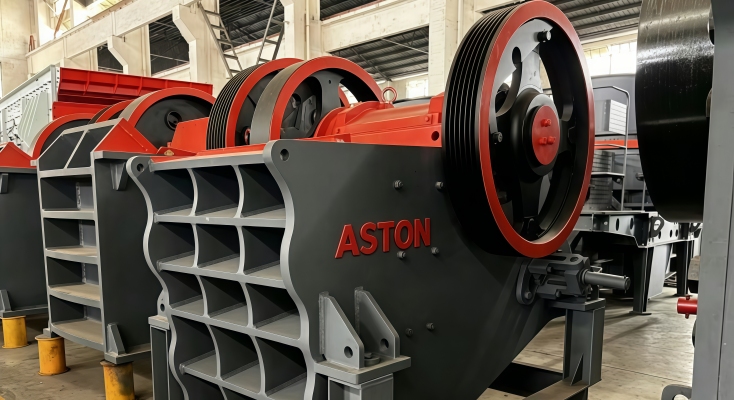

ASTON European Jaw Crusher: High-Performance Reduction for Hard Rock Crushing
Engineered with world-class manufacturing standards, ASTON European jaw crusher serves as a premier solution for both primary and secondary reduction circuits. It is specifically built to produce high-grade aggregates for heavy infrastructure projects, including highways, high-speed railways, and airport runways.
Featuring advanced crushing technology and an optimized cavity geometry, this heavy-duty unit easily handles extremely hard and highly abrasive ores. Its robust jaw assembly ensures consistent particle shaping and high throughput, even under severe mining and quarrying environments.
As a dependable workhorse for demanding operations, the European jaw crusher seamlessly integrates into existing aggregate plants. Its heavy-duty construction and low-wear engineering significantly minimize maintenance downtime, lowering overall operational expenditure for aggregate producers.
Maximum feed size: 480~1200mm
Discharge range: 60~300mm
Capacity: 105~1590t/h
Price: 1800-50000usd
Coarse stone
Middle size stone
Fine stone
Application field of European jaw crusher
Material
Engineered to tackle tough and highly abrasive geological formations, including hard rocks such as granite, basalt, river pebbles, quartz, and iron ore, as well as medium-hard materials like limestone and dolomite, providing exceptional size reduction across diverse feed stocks.
Application
Widely deployed in open-pit mining, quarrying, aggregate production plants, and large-scale infrastructure operations—such as highway construction, high-speed rail bed development, airport runway paving, and hydropower project development—where high-capacity primary crushing is essential.
European jaw crusher features:
- Heavy-duty cast steel structure & FEA-optimized frame:Engineered with premium steel castings and forged eccentric shafts through finite element analysis, the main frame delivers maximum fatigue resistance and exceptional stability under heavy shock loads.
- Monolithic bearing housing & High radial strength:The integral cast steel bearing seats align seamlessly with the machine frame, ensuring a precise fit that eliminates localized stress concentration and significantly enhances structural durability.
- Symmetrical “V” chamber & Unobstructed material intake: Designed with a symmetrical “V” geometry, the crushing cavity matches the nominal feed opening width perfectly, facilitating smoother material throughput and maximizing crushing efficiency.
- Fast wedge setting adjustment & Safe downtime reduction: Equipped with an advanced wedge discharge adjustment mechanism, setting changes are faster, safer, and far simpler than traditional gasket methods, drastically cutting operational downtime.
- Over-sized sealed bearings & Tooth-shaped jaw plate: Large-capacity eccentric bearings protected by effective labyrinth seals extend service life, while specialized tooth-profile jaw plates increase effective crushing length to deliver higher product output.
Specification of European jaw crusher:
| Model | Maximum feed size (mm) | Size of feed inlet (mm) | Discharge outlet adjustment range (mm) | Capacity (t/h) | Motor power (kw) | Dimension (mm) |
| CJ96 | 480 | 930×580 | 60-175 | 105-390 | 4P 90 | 2850×2270×1950 |
| CJ106 | 560 | 1060×700 | 70-200 | 150-500 | 4P 110 | 3280×2580×2400 |
| CJ120 | 700 | 1200×870 | 70-200 | 175-610 | 4P 160 | 3700×2790×2950 |
| CJ125 | 760 | 1250×950 | 100-250 | 270-831 | 4P 160 | 4230×2780×2960 |
| CJ150 | 960 | 1400×1200 | 125-250 | 340-880 | 4P 200 | 5030×3440×3970 |
| CJ160 | 960 | 1600×1200 | 150-300 | 430-1145 | 4P 250 | 5780×3460×3580 |
| CJ200 | 1200 | 2000×1500 | 175-300 | 630-1590 | 6P 400 | 6600×3000×4400 |
| CJ1511 | 850 | 1500×1070 | 125-300 | 380-1080 | 6P 200 | 4130×3000×3330 |
| CJ1513 | 1040 | 1500×1300 | 150-300 | 480-1160 | 6P 200 | 4620×2890×4190 |
Applicable materials for European jaw crusher
Dolomite
Sand stone
Limestone
Marble
Pebbles
Basalt
Recycled concrete
Coal gangue
Phosphate rock
Iron ore
Granite
Quartzite
Versatile applications for European jaw crusher
Whether utilized for high-intensity quarrying of extra-hard formations or primary processing in metal mining operations, ASTON European jaw crushers deliver steady crushing performance under demanding heavy-duty environments.
By combining an optimized “V” cavity geometry with heavy-duty cast steel construction, these advanced units provide smooth material intake and exceptional throughput, giving aggregate plants and infrastructure projects a highly efficient, reliable size-reduction solution.
Typical application areas
Mining & Mineral processing:
High-capacity primary reduction of tough, highly abrasive metallic ores (iron ore, copper, gold) and industrial minerals in heavy-duty open-pit mines.
Quarrying & Hard rock crushing:
First-stage size reduction for hard stone formations—such as granite, basalt, quartzite, and river pebbles—producing high-durability aggregate feed for downstream circuits.
Highway & Infrastructure construction:
On-demand production of top-grade crushed stone and sub-base materials required for high-speed railways, highway paving, airport runways, and concrete dams.
Building material & Cement industries:
Crushing large-size raw feeds like limestone, dolomite, and sandstone to precise feed dimensions suitable for cement clinker lines and aggregate plants.
Explore industrial applicationsWorking process of European jaw crusher
Our European jaw crusher operates through a continuous, cyclic motion that converts rotational motor power into high-intensity compressive force. By driving the movable jaw plate against the fixed jaw, the machine delivers efficient primary size reduction for tough rock feeds while ensuring smooth material discharge for continuous plant productivity.
Raw rock feeds enter the symmetrical “V”-shaped crushing cavity through the top feed opening. The deep chamber geometry guides incoming materials directly into the active crushing zone between the fixed and movable jaw plates.
Powered by the heavy eccentric shaft, the movable jaw periodically advances toward the fixed jaw. This motion subjects the material to massive compressive, splitting, and impact forces, shattering hard lumps into smaller fragments.
As the eccentric shaft rotates further, the movable jaw retracts away from the fixed jaw. The crushed material moves downward under gravity and is continuously discharged through the bottom wedge-adjusted exit.
Operators can easily adjust the wedge setting system to modify the discharge gap size. This precise adjustment controls product output dimensions to match specific aggregate gradation requirements downstream.
European jaw crusher main components
Engineered with heavy-duty steel castings and precision-machined eccentric shafts, every component of our European jaw crusher is built for maximum impact endurance and operational reliability. Featuring an elevated movable jaw plate design and superior bearing chamber seals, the rugged assembly prevents material jams, eliminates oil leakage, and delivers smooth, low-noise, energy-efficient performance.
The rigid main base supports the fixed jaw and absorbs heavy shock loads during primary crushing. Fitted with high-manganese tooth plates and side shields, the structural frame provides maximum wear resistance and long-term chassis integrity.
The movable jaw is cast from high-strength steel, with its tooth plate installed 80–250 mm higher than the fixed jaw. This unique height difference effectively shields the upper jaw body and bearing housing, ensuring smooth material flow while preventing bridging and jams.
Sleeved into the upper end of the movable jaw, the heavy-duty eccentric shaft is forged from high-grade alloy steel. The precision-machined bearing chamber accommodates large-capacity bearings to handle extreme radial forces seamlessly.
The bearing housing is built with optimized labyrinth sealing technology to lock in lubrication and keep dust out. This superior sealing performance eliminates oil leakage, extends lubricant life, and drastically lowers maintenance frequency.
Both sides of the crushing chamber are lined with replaceable alloy side shields. Secured by heavy-duty bolts, these guards protect the internal side walls from severe material abrasion and can be quickly replaced during routine servicing.
